This category contains 1000 Watt ,1500 Watt and upto 6 KW Fiber laser cutting machines, used for cutting thick and heavy MS, SS, Aluminium , Copper and brass plates. These machines are heavily built to manage high speeds and accuracy.

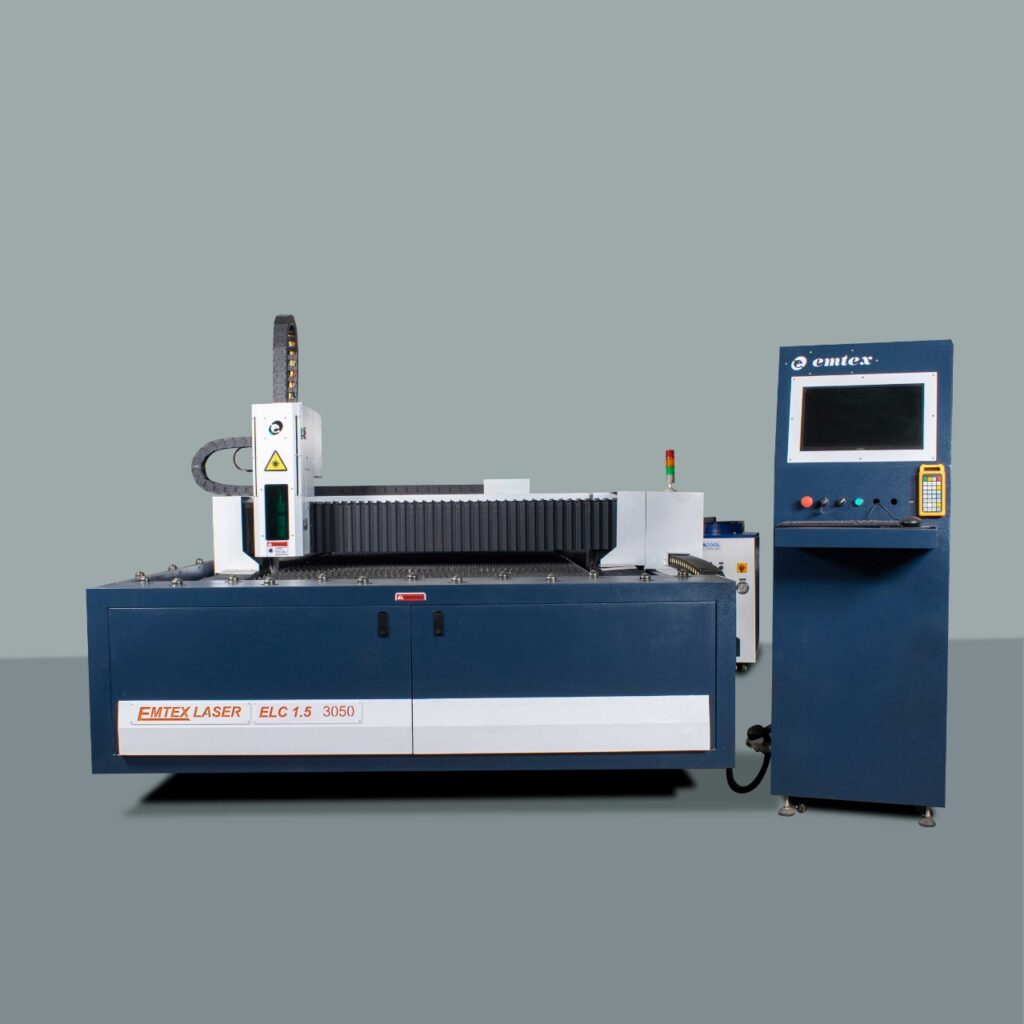

These machines comes with both closed body and open body options as shown in the images.
Options available for Fiber laser source are Raycus and IPG from Germany, depending on customer’s requirement.
Processing capacities :
| Material | 1000 Watt | 1500 Watt | 2000 Watt | 3000 Watt |
| Carbon Steel | ≤10mm | ≤12mm | ≤16mm | ≤20mm |
| Stainless Steel | ≤5mm | ≤6mm | ≤8mm | ≤12mm |
| Aluminium | ≤3mm | ≤5mm | ≤6mm | ≤10mm |
| Brass | ≤2mm | ≤4mm | ≤5mm | ≤6mm |

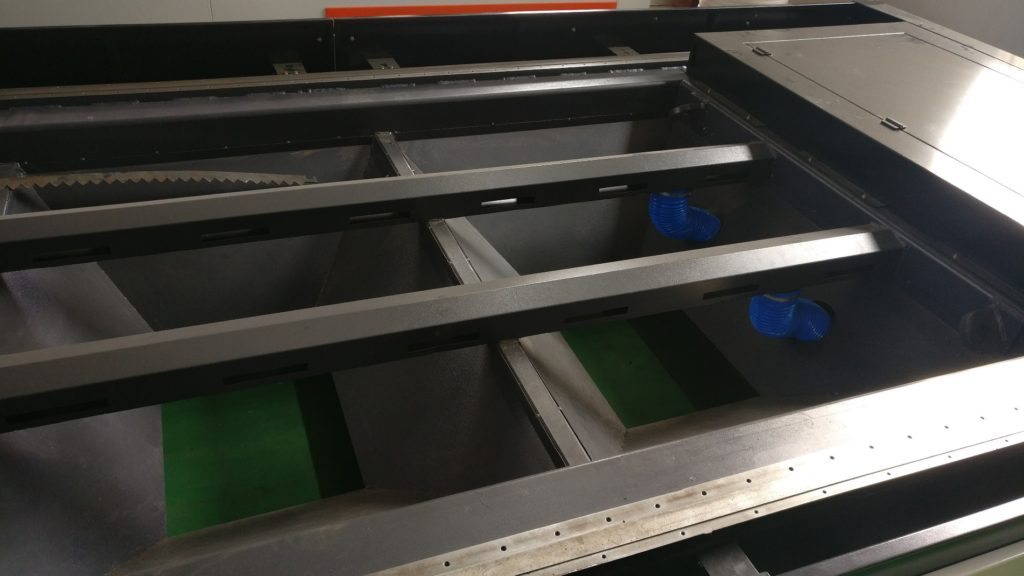

Heavy base for high speeds , life and accuracy

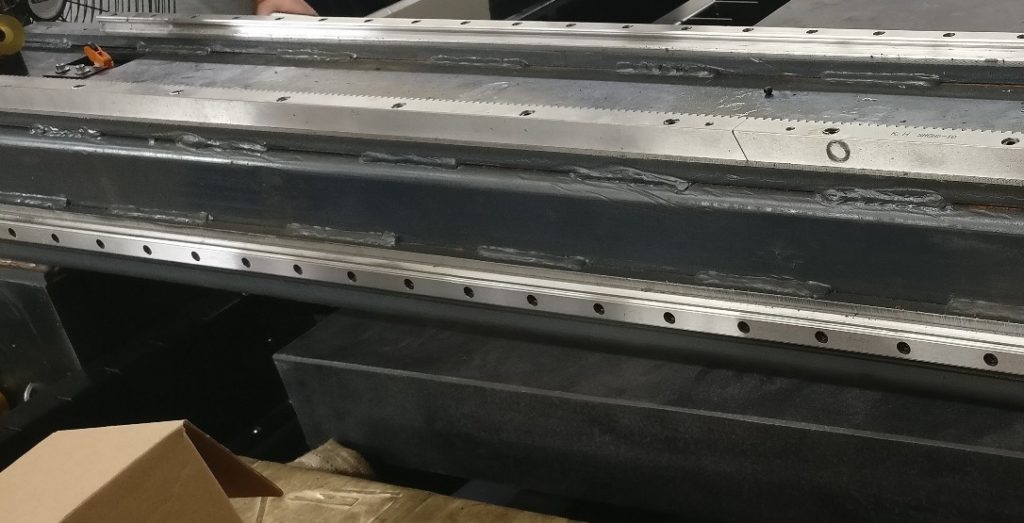

Heavy Cross-Section welded cross Gantry for better stability and Speed

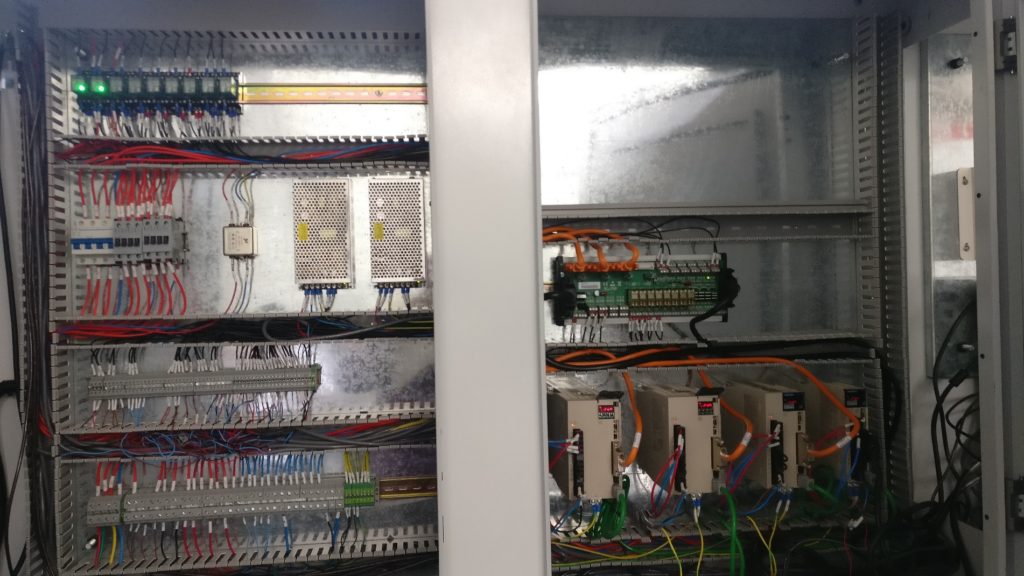

Overview of Electrical Panel

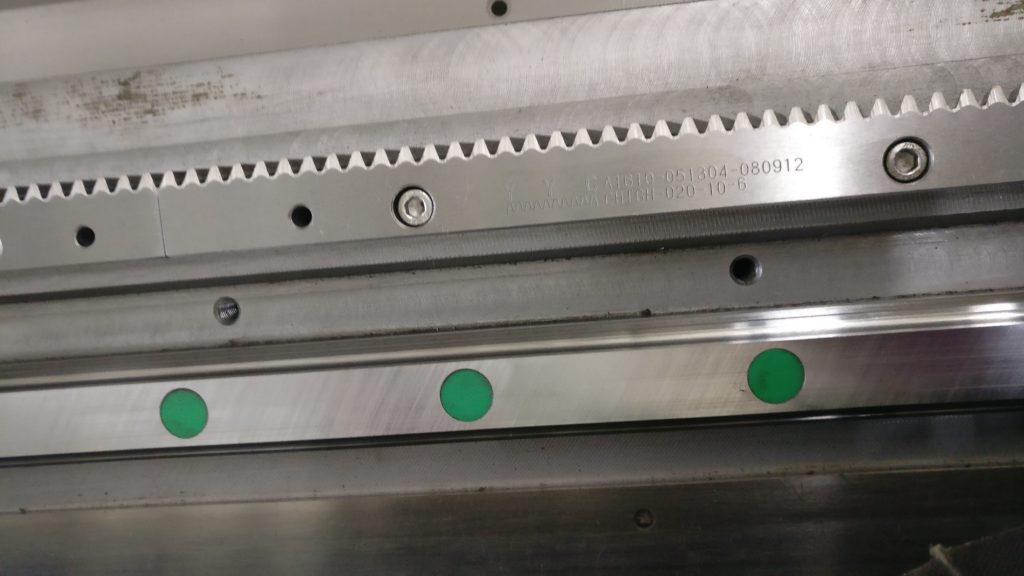

YYC Taiwan Racks , HIWIN LM Guides
