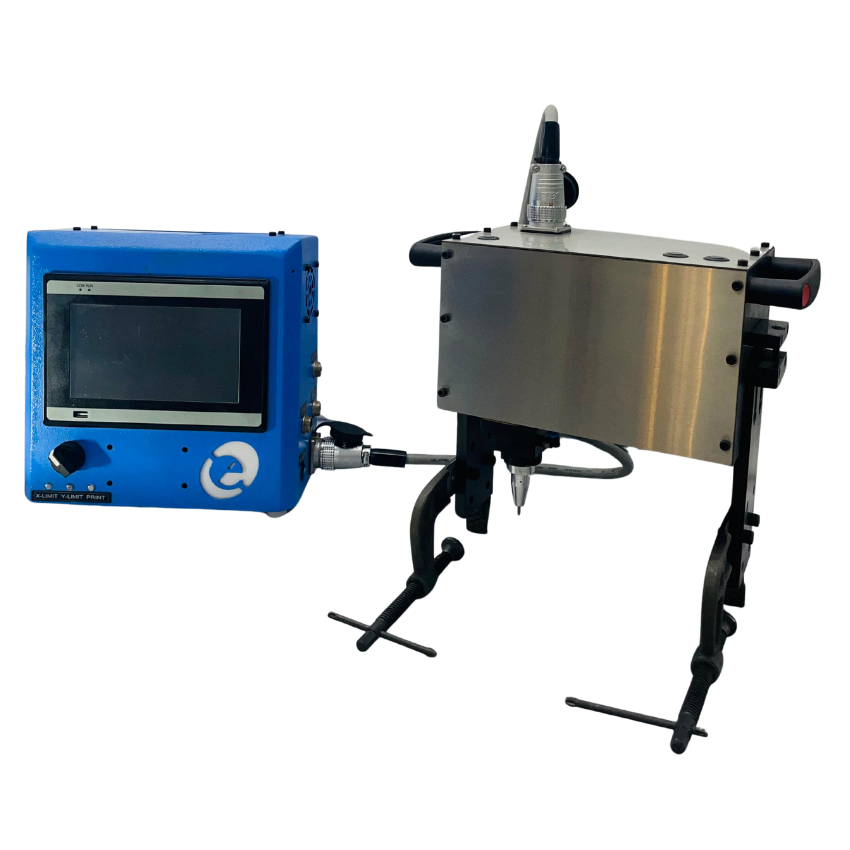

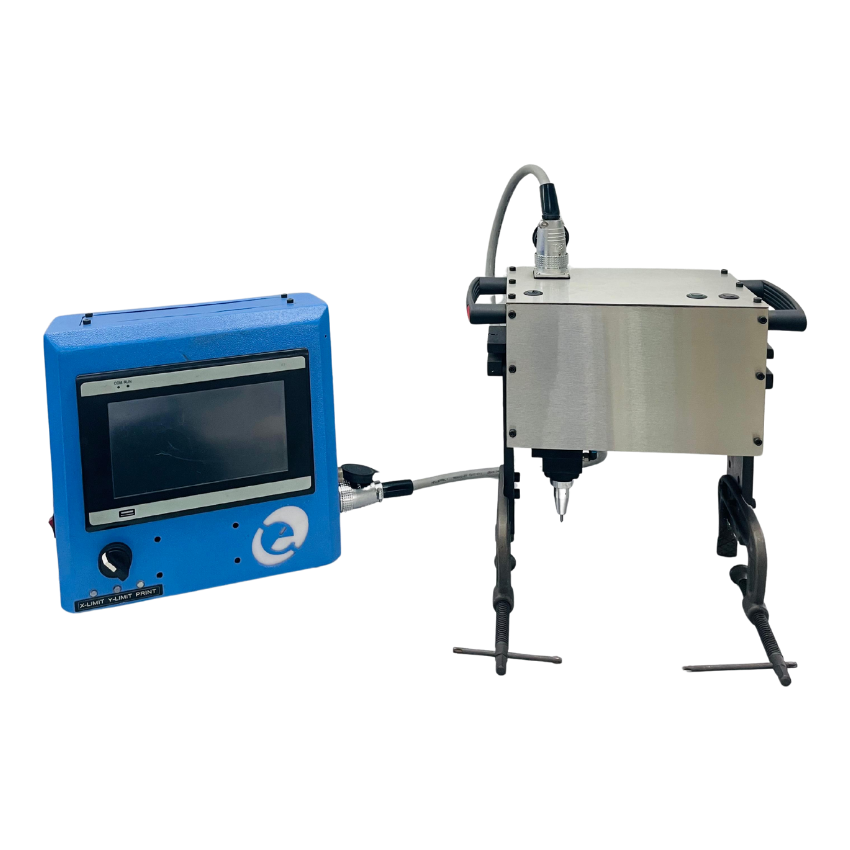

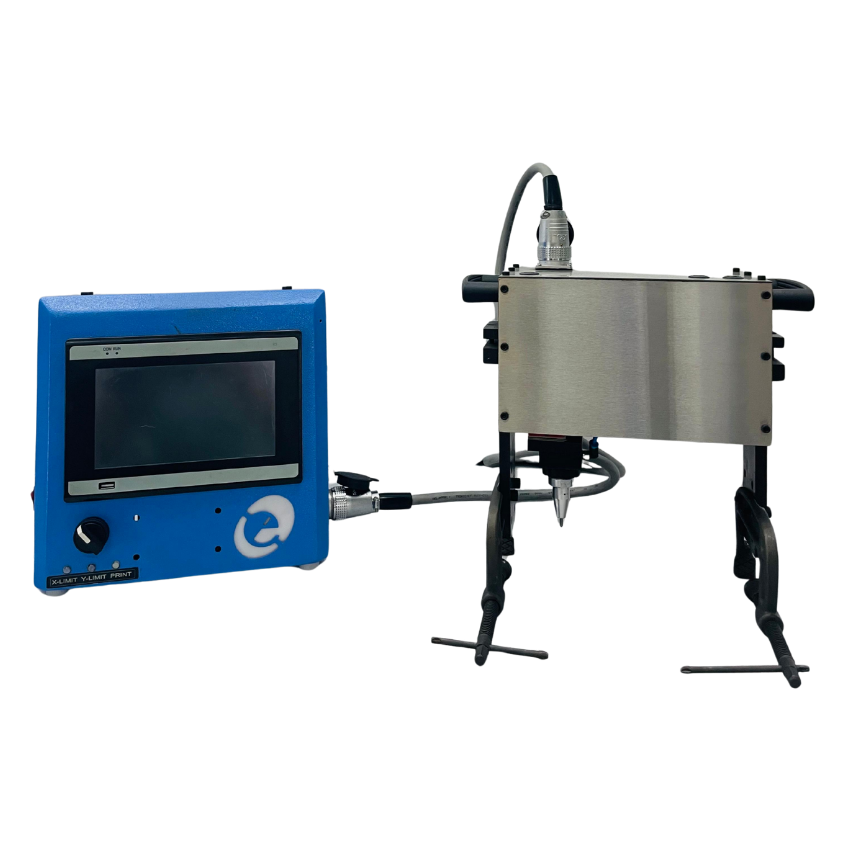

Emtex portable dot pin marking machine is designed for use with large and heavy products that can not be moved. It allows direct part marking on product surface using carbide stylus pin with 95 HRC. Compact/Rigid/Easy to handle marking head Japanese Transmission Belts Customized clamping Fixtures for marking on inaccessible marking areas. Emtex is a largest Indian manufacturer for Dot Peen marking machines with a large number production capacity of Dot Peen Marking machines per month. Dot peen Marking machines are very basic yet very useful machines for marking a Deep Engraved or punched impression on a component. These machines are widely used for marking on Stainless steel Pipes, E-Rickshaw Chassis, Name Plates, Automobile Parts, Sheet metal Fabrications.
Chat NowMachine Description
| Specification | Details |
|---|---|
| Model No | HH0904 (Marking Area - 90mm×40mm), HH1510 (Marking Area - 150mm×100mm) |
| Marking Type | Plain / Arc |
| Marking Depth | 0.1mm - 2mm (Depend on Hardness of material) |
| Power Supply | 230-240 Volt |
| Intendor Pin Hardness | HRC 98 |
| Clamping Fixture | C Clamp, Magnetic |
| Machine Load | 300 watt |
| Earthing | 0.1V - 5V |
| Controller | 7" HMI Touch Screen Based / Desktop Based |
Sample Images
