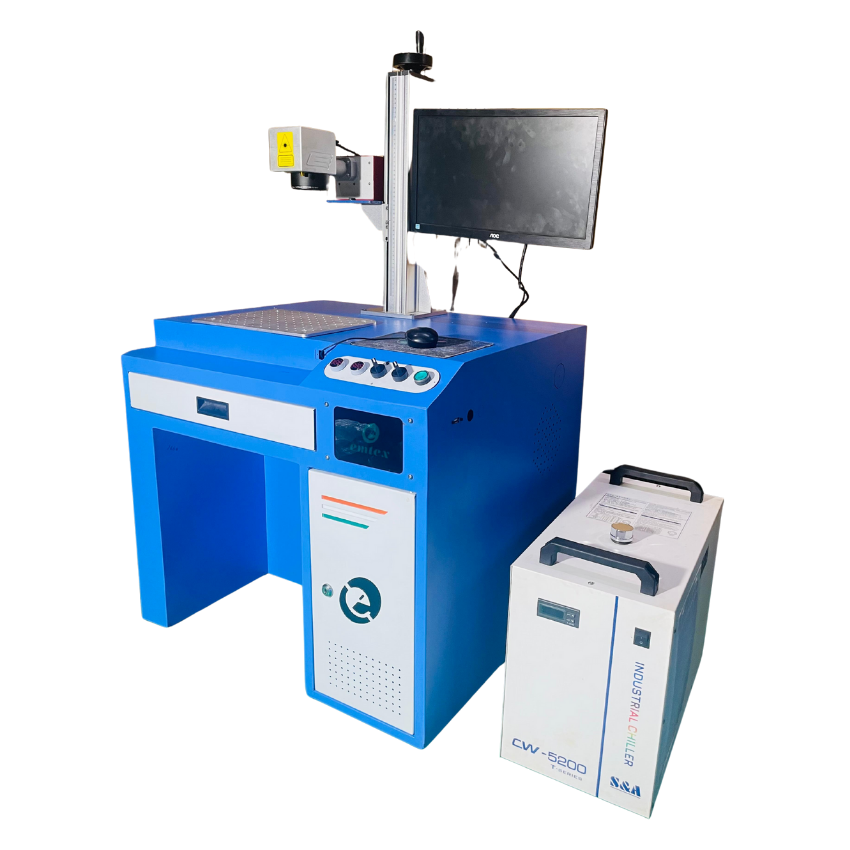

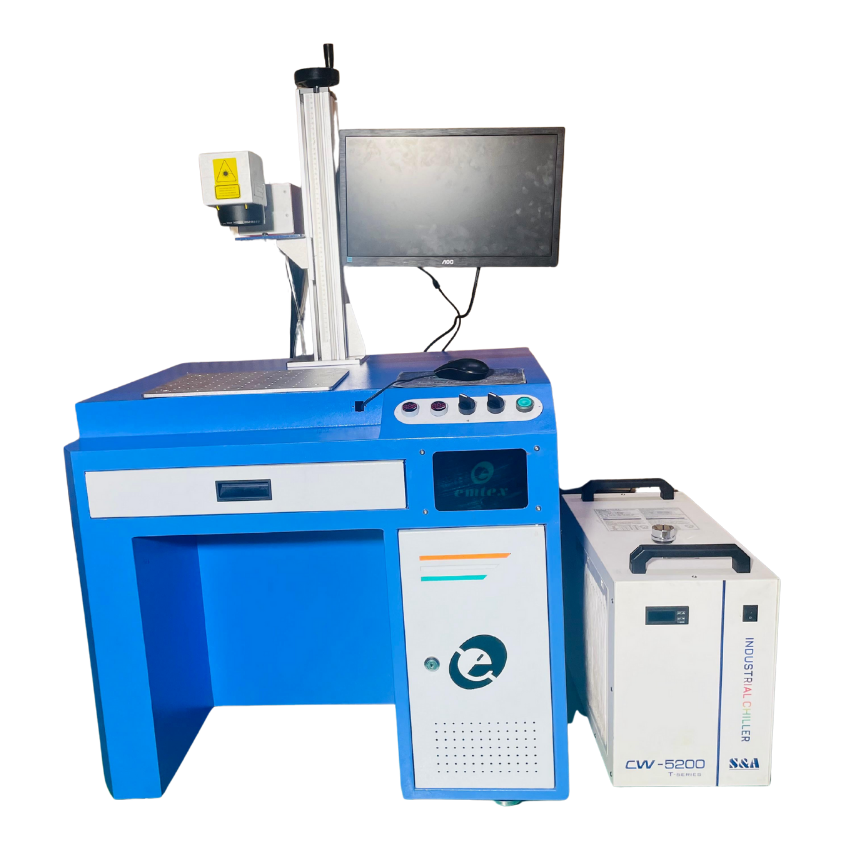

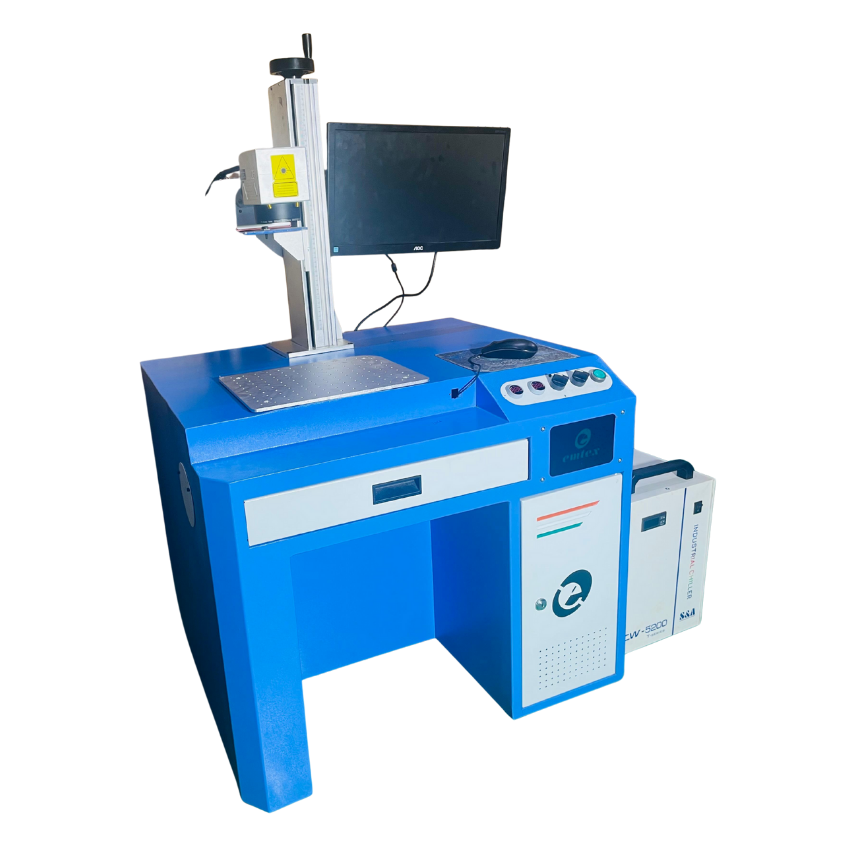

Emtex UV Laser Marking Machine is designed for high-precision, low-heat marking on a wide range of materials, especially those sensitive to thermal stress. Utilizing a short-wavelength ultraviolet laser, this machine ensures minimal heat-affected zones, making it ideal for fine and permanent marking on plastics, glass, ceramics, silicon wafers, and coated metals.
With advanced beam quality and micro-focused spot size, our UV laser delivers crisp, high-contrast marks including barcodes, QR codes, logos, and alphanumeric characters, even on micro-scale components. The system is widely used in electronics, medical devices, packaging, and automotive industries where marking quality and durability are critical.
Chat NowMachine Description
Key Features:
- Cold Marking Process – Prevents material deformation or burns.
- Ultra-Fine Marking – Perfect for micro-text and intricate designs.
- Versatile Material Compatibility – Works on plastics, glass, ceramics, metals, and coated surfaces.
- Long Service Life – High-quality UV laser source for stable performance.
- Eco-Friendly Operation – No consumables, low power consumption.
| Specification | Details |
|---|---|
| Laser Power | 3W, 5W, 10W, 15W |
| Working Area | 100mm x 100mm, 175mm x 175mm, 220mm x 220mm, 300mm x 300mm & Customized |
| Wavelength | 355 nm (ultraviolet) |
| Best For | Heat-sensitive materials (plastics, glass, silicon, ceramics) |
| Not Suitable For | Deep marking on metals |
| Marking Type | Cold marking (no heat damage), micro-marking |
| Speed | Medium to High |
| Lifespan | 20,000–30,000 hours |
| Working Volt | Single phase 220-230V / 50HZ (Earthing requirement) |
| Common Applications | Electronics, medical devices, circuit boards, cosmetics packaging, glass bottles |
Sample Images
