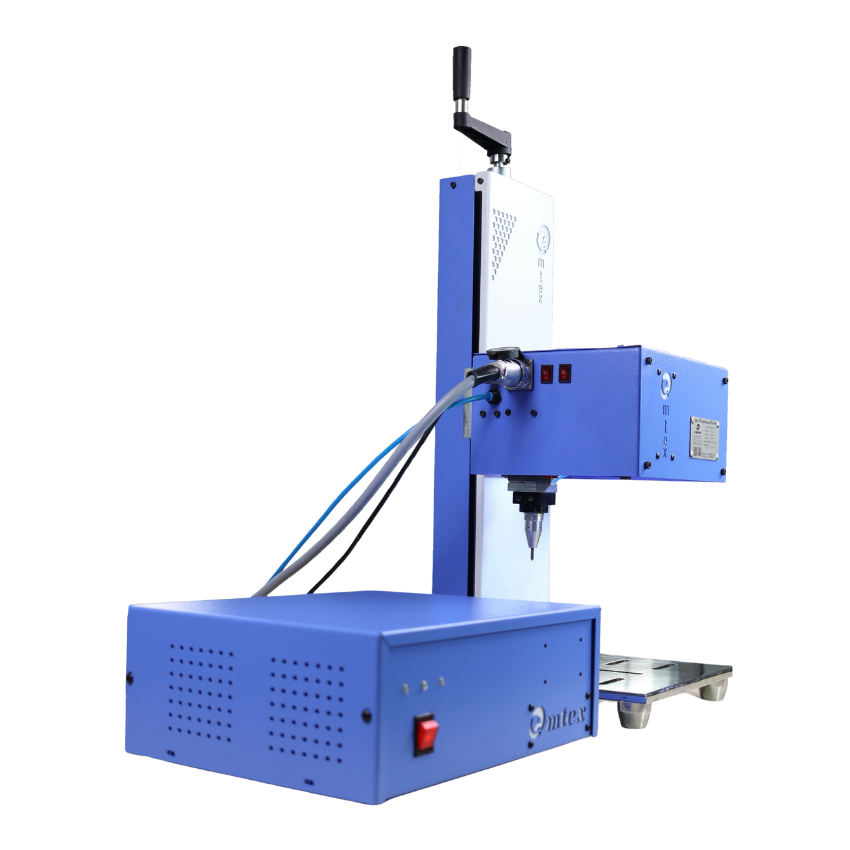

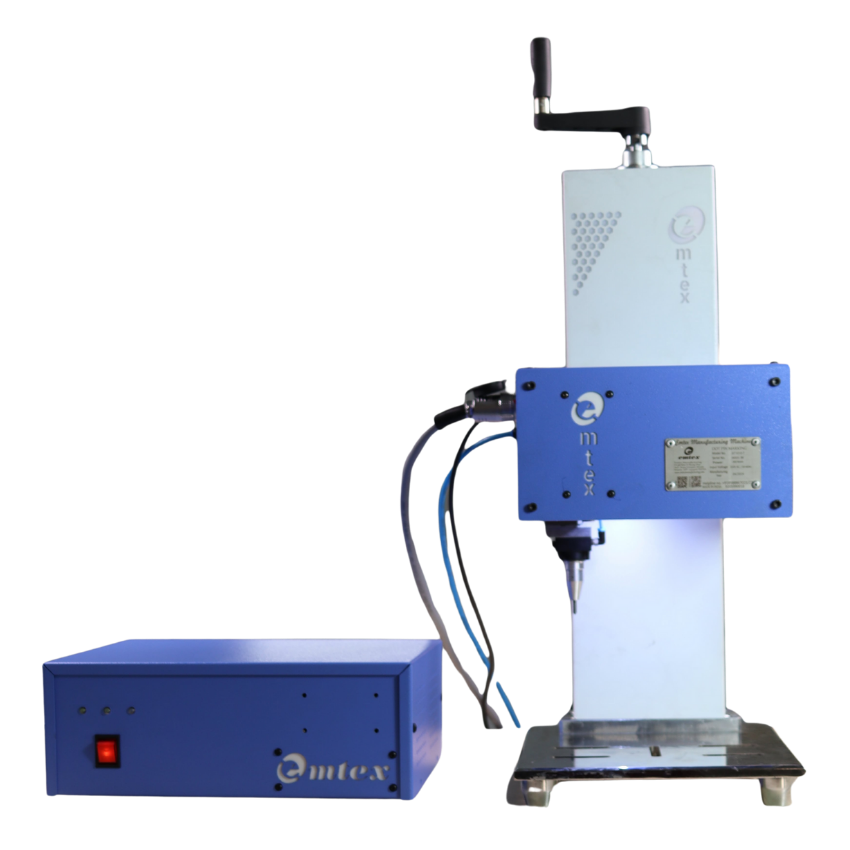

The Emtex Table-Mount Desktop Controller Machine is a compact, high-performance marking solution designed for ease of integration and efficient operation. It connects seamlessly to a computer or laptop via a standard cable interface and is operated through the advanced ThorX 6 software, ensuring precise and reliable control.
Engineered for versatility, this machine supports permanent marking on both flat and curved surfaces, making it ideal for a wide range of industrial and commercial applications. Its user-friendly interface and intuitive controls make it easy to operate, reducing the need for extensive training and enabling quick setup and operation.
Chat NowMachine Description
| Specification | Details |
|---|---|
| Model No | ST1010 (Marking area - 100mm×100mm), ST1510 (Marking Area - 150mm×100mm), ST2020 (Marking Area - 200mm×200mm), ST3020 (Marking Area - 300mm×200mm), Customization available |
| Marking Type | Plain / Arc and Circumference |
| Marking Depth | 0.1mm - 2mm (Depend on Hardness of material) |
| Power Supply | 230-240 Volt |
| Intendor Pin Hardness | HRC 98 |
| Working Height | 350 (Manual) & Automatic |
| Machine Load | 300 watt |
| Earthing | 0.1V - 5V |
| Controller | Computer Based |
| Connection | USB Type |
Sample Images
