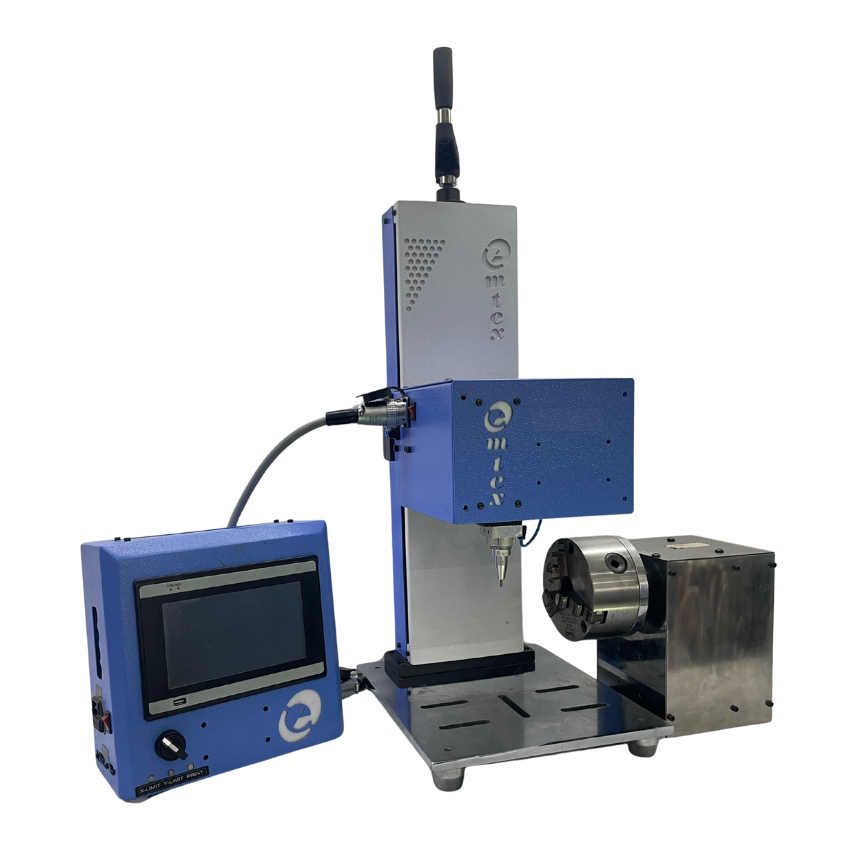

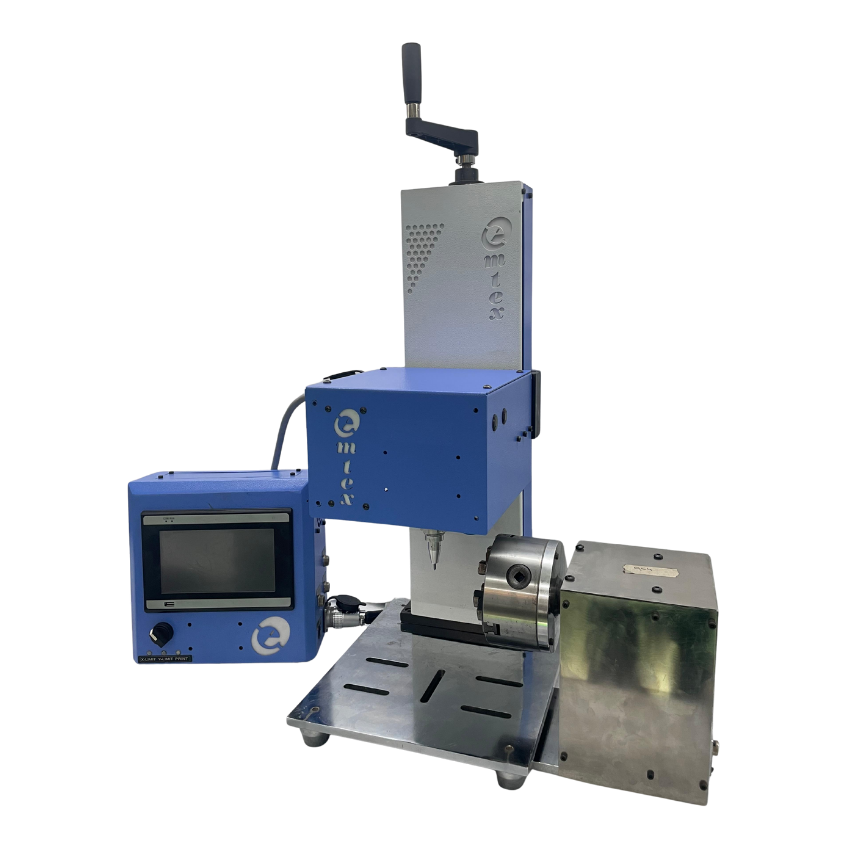

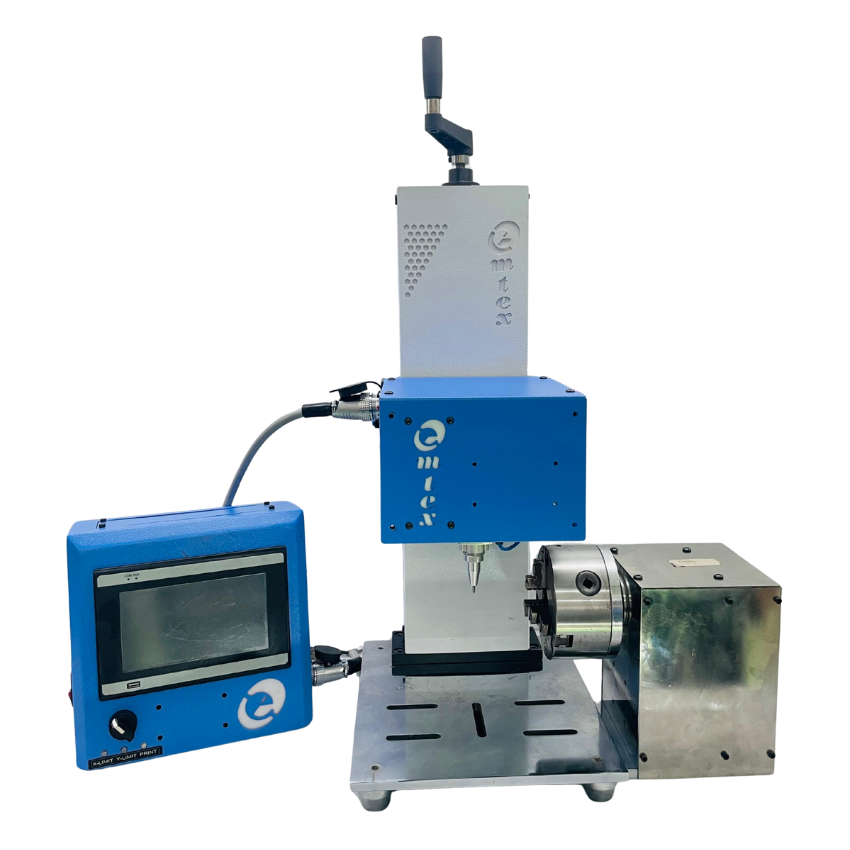

The Emtex Table Mount Laser Marking Machine, equipped with a rotary attachment, is engineered for high-precision 360-degree marking on round, curved, and flat surfaces. The rotary axis is seamlessly integrated with the software, enabling synchronized rotation and marking for superior accuracy and clarity.
This machine is available in both desktop and HMI-based configurations, offering flexibility to suit various operational environments. Designed with user-friendliness in mind, it features an intuitive interface that ensures easy operation and minimal training requirements.
With its robust design and advanced functionality, this machine is ideal for permanent marking applications across a wide range of components and industries.
Chat NowMachine Description
| Specification | Details |
|---|---|
| Model No | ST1010TR (Marking area - 100mm×100mm), ST1510TR (Marking Area - 150mm×100mm), ST2020TR (Marking Area - 200mm×200mm), ST3020TR (Marking Area - 300mm×200mm), Customization available |
| Marking Type | Round, Plain / Arc and Circumference |
| Marking Depth | 0.1mm - 2mm (Depend on Hardness of material) |
| Power Supply | 230-240 Volt |
| Intendor Pin Hardness | HRC 98 |
| Working Height | 350 (Manual) & Automatic |
| Machine Load | 300 watt |
| Earthing | 0.1V - 5V |
| Controller | 7" HMI Touch Screen Based / PC Based |
| Rotary Size | 5", 8", 10", Customization available |
Sample Images
