Emtex Dot Pin Engraving Machine is a highly reliable industrial technology requiring no consumables to direct part marking. This process offers permanents , tamperproof marking with no removal of material. Our marking machine allows the user to Intend the specified data onto the workspace accurately without any damages with the help of its stylus pin.
This machine can be used to mark on all surfaces including inside circle normal, incremental and decremental serial no., Date & time, 2D Code. Company Logo. VIN No..
Industrial Marking Machine With Low Maintenance, Best Quality & User Friendly.
Our dot peen marking machine offers permanent, legible, and deep marking on metals and plastics at a good purchase cost and high return on investment. Their integration on production lines is quick and easy thanks to their compact design and full connectivity.
Chat NowMachine Description
Emtex Dot Peen Marking machines incorporates best electrical , Mechanical and Electrical parts. Electricals are used from Delta, Schneider , Omron. Pneumatics are used from SMC and festo Pneumatics, Drivers and motors from Lead Shine Taiwan, makes Emtex Dot Peen marking machine a Best machine in class for marking on different metal and hard plastics.
| Specification | Details |
|---|---|
| Model No | ST1010 (Marking area - 100mm×100mm), ST1510 (Marking Area - 150mm×100mm), ST2020 (Marking Area - 200mm×200mm), ST3020 (Marking Area - 300mm×200mm), Customization available |
| Marking Type | Plain / Arc and Circumference |
| Marking Depth | 0.1mm - 2mm (Depend on Hardness of material) |
| Power Supply | 230-240 Volt |
| Intendor Pin Hardness | HRC 98 |
| Working Height | 350 (Manual) & Automatic |
| Machine Load | 300 watt |
| Earthing | 0.1V - 5V |
| Controller | 7" HMI Touch Screen Based |

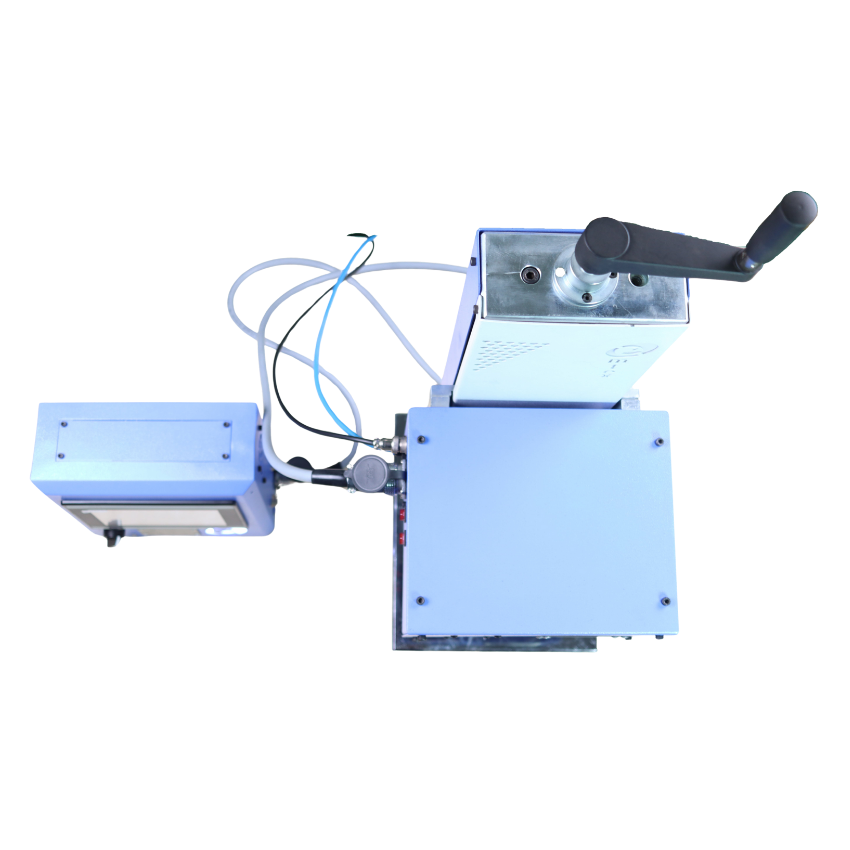

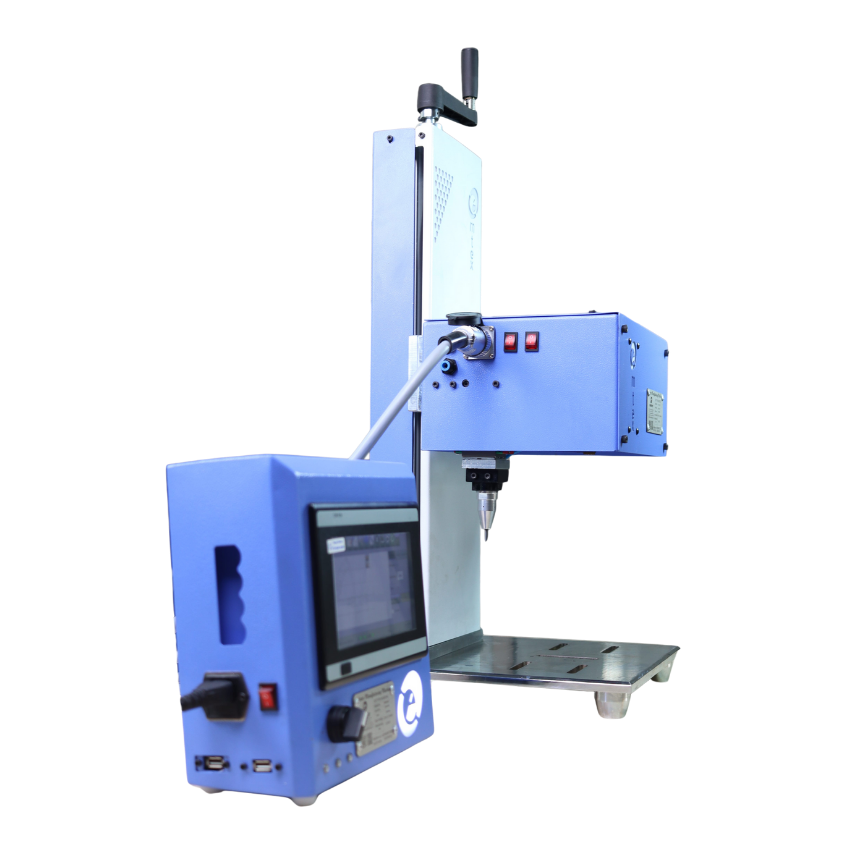

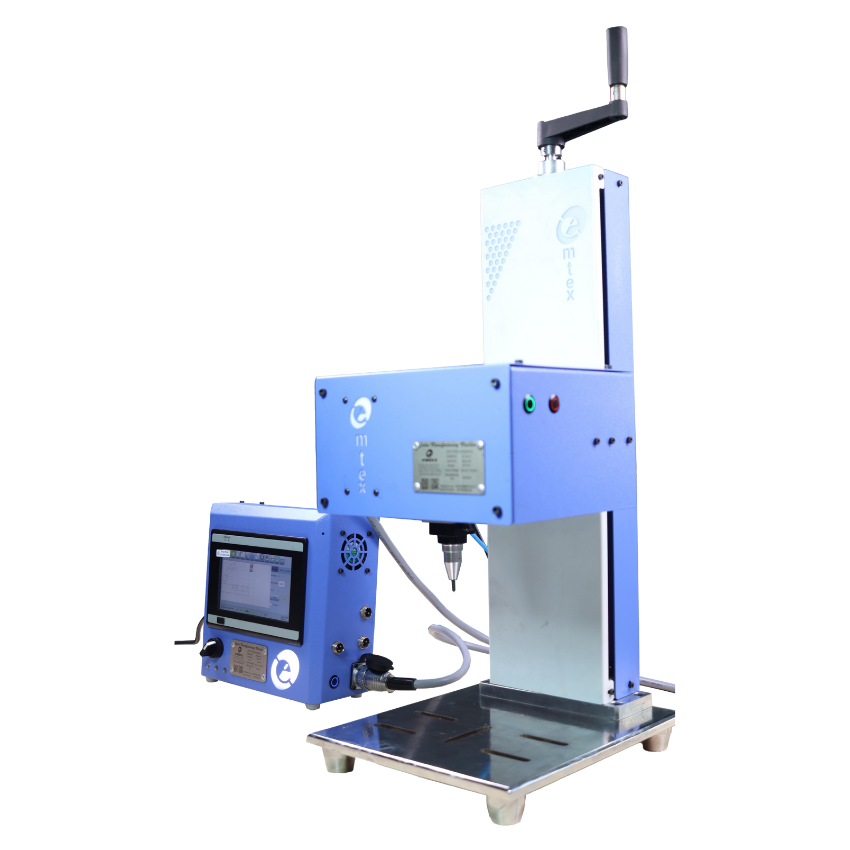

Sample Images
